Seat Modification

My seat was beat and I needed some additional suspension so I bought a seat and suspension from K&M Manufacturing

KM 406 Uni Pro - Grey Viny $159, ultra-low mechanical suspension #6081 $158, slide rails # 6043 and retractable seat belt $29

A brief post at

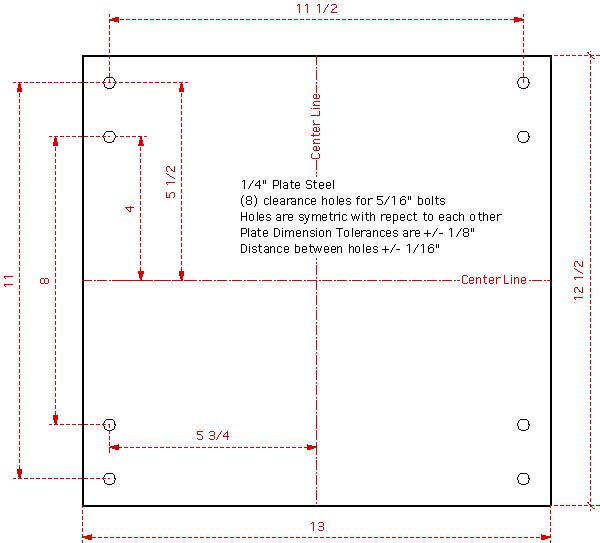

The seat suspension is wider than the PT mounting plate so I made an adapter plate shown below:

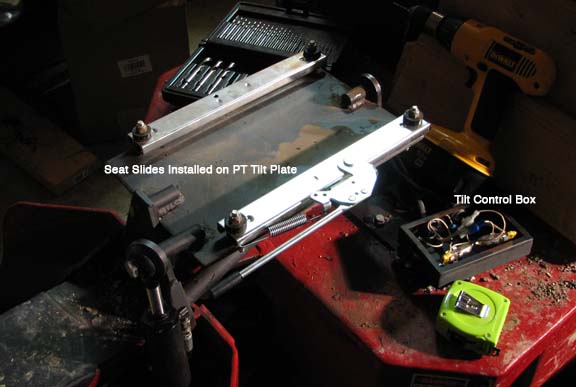

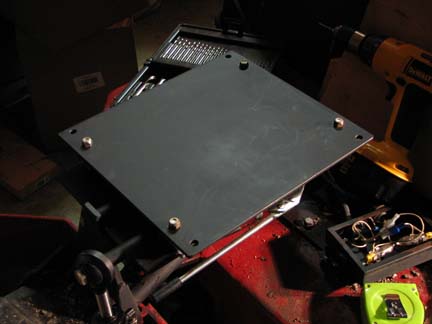

Here is a picture of the adapter plate mounted on the slides:

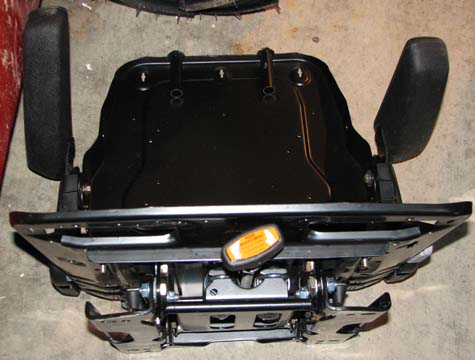

Here is the suspension mounted to the seat frame:

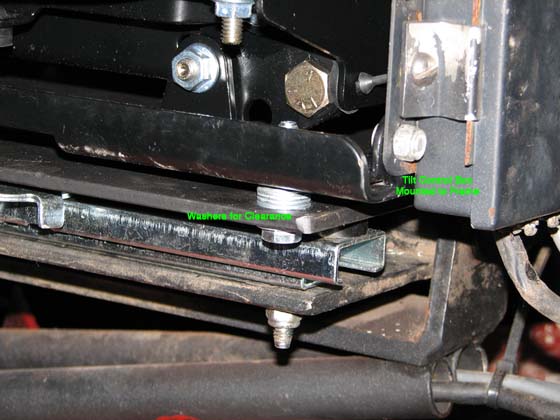

When mounting, I had to add a few washers for clearance:

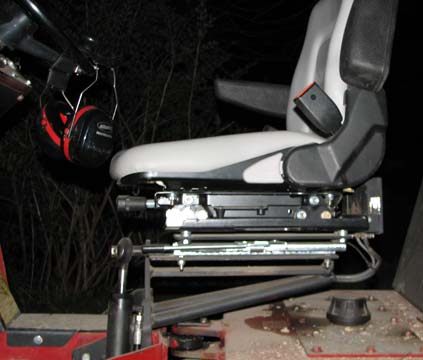

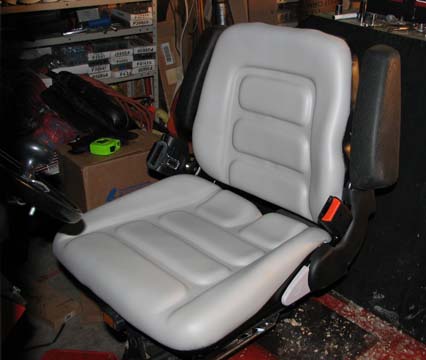

Here are pictures of the seat after installation:



Back to Main PT 1850 Page
