Tractor Modifications for Filter Cart, Magnets, and Thermometer

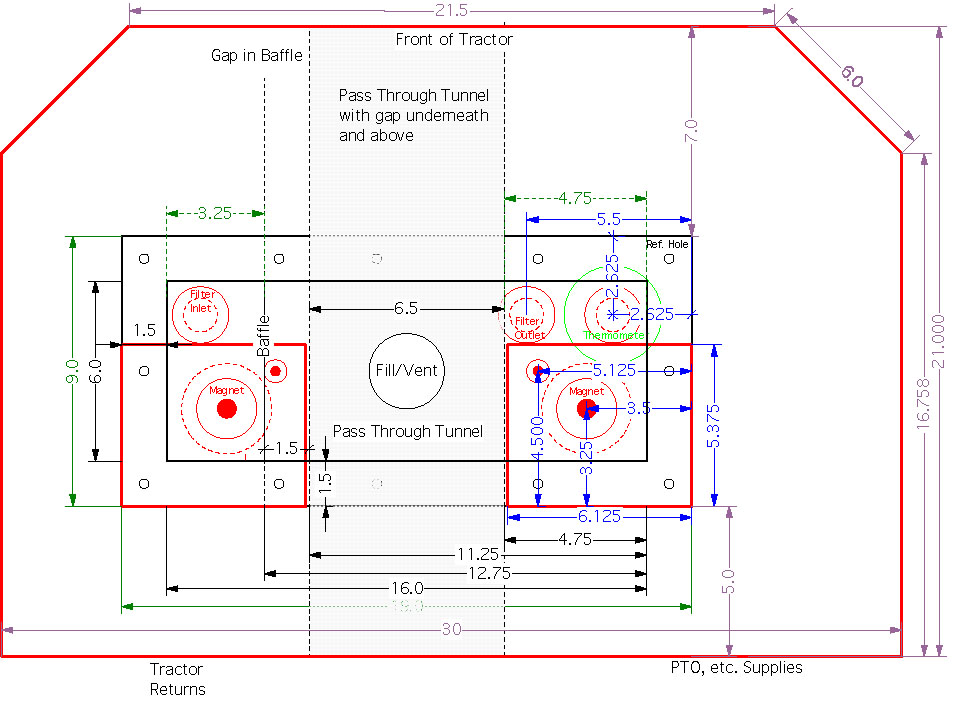

I had to modify the tractor to accomodate the filter cart, magnets, and thermometer. The magnets are shown in more detail at: Tank Magnets The existing tank before and after cleaning can be seen at Tank Cleaning Here is a CAD drawing of the tank, cover, and modifications:
|

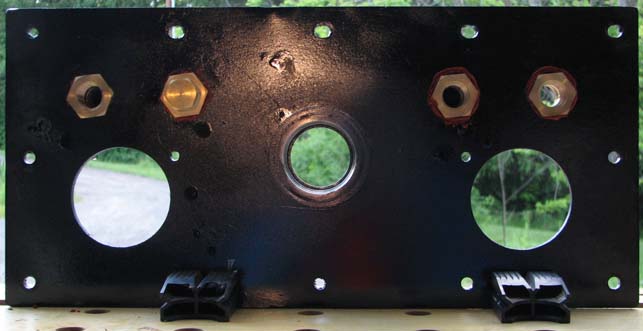

Here is the top of the cover part way through modification:
|

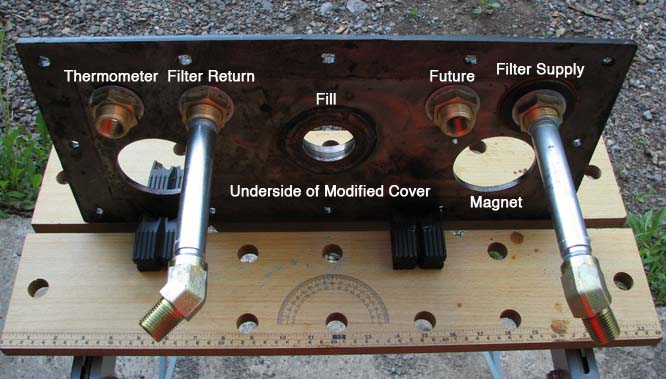

And the other side:
|

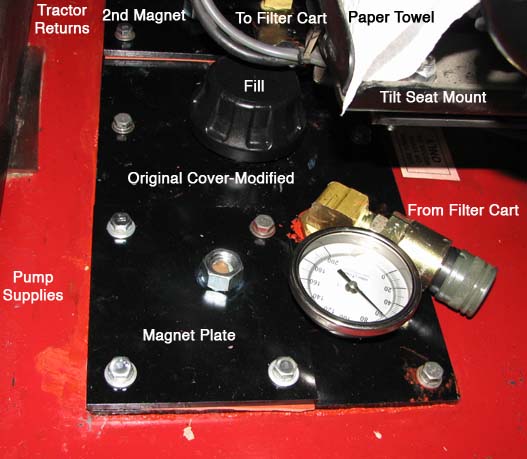

After installation - right side:
|

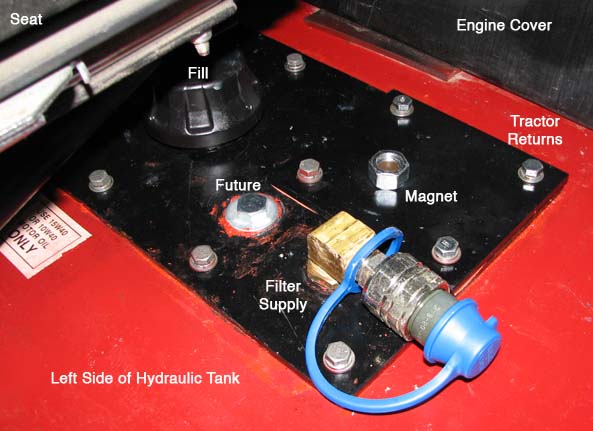

And left side:
|
