PORTABLE GENERATOR SET ACCESSORIES



ITEM NO.

ITEM Description

- 3

3 Phase, 60 Hertz
Special Winding

Special 3 phase winding on any generator for 208, 220, 240, or 480 volts (select only one voltage at time of order) 3 phase power with load terminal strip located in control panel. Generator ratings are shown in KVA, based on .8 power factor. (For BDN, GPN, GPND, and GPWD models only, 7.5 kw to 15 kw gen-sets.)

- 5

50 Hertz Winding for 2-Pole, 3000 RPM sets

Special winding allows any model to produce voltage at 50 hertz. For use in certain sections of the world that have this type of power. Derate 60 hertz wattage and amp ratings by 15%. Speed is reduced to 3000 rpm.

G10

3 Phase Receptacle (for mounting on panels for 6.5 thru 16kw)

All 3 phase windings are equipped with a load terminal strip for permanent wired installations. A 4-wire, 3 phase receptacle is mounted flush on panel for portable (or easy power take-off) applications. A matching male plug is furnished loose for complete set.

G12

Two-Wheel Dolly Kit

Kit is shipped disassembled and has axle, handles, and 2 full pneumatic wheels, size 10" dia. x 4" wide. Fits all GPN, GPND, and PP portable generators, 3.0 to 7.5 kw. All larger sizes, 9.0 kw thru 15 kw, have built in 2 wheel full pneumatic 10” tires & lifting hook supplied as standard equipment.

G13

Ground Fault Circuit Interrupter (GFCI) for
240 Volt Circuits

OSHA requires GFCI "Shock Protection" on all electrical, 120 VAC circuits at job-site.  We provide this protection on all Gen-Pro sets.  However, certain applications require this GFCI protection on the 240 VAC circuits. This is now available as an option, to protect all 120 and 240 Volt receptacles.

G14

Remote START-STOP Control Panel

(G-15A) 3 button START-STOP Panel for all Kubota diesel engines with pre-heat starting.

G18

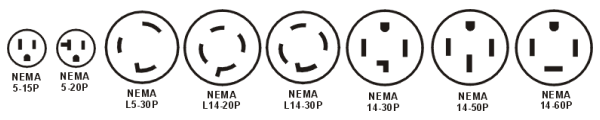

Loose Male Cap Plug to fit Mounted Generator Receptacles

G15-1

NEMA Number 5-15P = 15 AMP, 120 Volt, 1 Phase, 3 Wire Male Cap

G15-2

NEMA Number 5-20P = 20 AMP, 120 Volt, 1 Phase, 3 Wire Male Cap

G15-3

NEMA Number L5-30P = 30 AMP, 120 Volt, 1 Phase, 3 Wire Male Cap

G15-4

NEMA Number L14-20P = 20 AMP, 120/240 Volt, 1 Phase, 4 Wire Male Cap

G15-5

NEMA Number L14-30P = 30 AMP, 120/240 Volt, 1 Phase, 4 Wire Male Cap

G15-6

NEMA Number 14-30P = 30 AMP, 120/240 Volt, 1 Phase, 4 Wire Male Cap

G15-7

NEMA Number 14-50P = 50 AMP, 120/240 Volt, 1 Phase, 4 Wire Male Cap

G15-8

NEMA Number 14-60P = 60 AMP, 120/240 Volt, 1 Phase, 4 Wire Male Cap
