MODELS DTS3R-225-1-1
RESIDENTIAL AUTOMATIC TRANSFER SWITCH

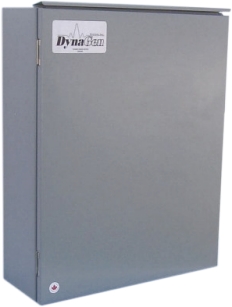

Exterior Picture

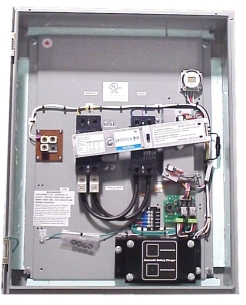

Interior Picture

SHOWN ABOVE IS MODEL DTS3R-225-1-1, 2 POLE, 120/240 VOLTS, 1 PHASE SWITCH WITH NEMA-3R ENCLOSURE

OPERATION

All DTS3R-225 transfer switch models include suitable sensing circuitry for automatic transfer of an electric load to a standby generator set, in the event of a drop or loss of utility power. Upon restoration of normal utility power, the electric load is automatically re-transferred to the utility power source. A transfer motor operates a crank that in turn, operates an aluminum lever arm, by sliding a nylon guide between top and bottom parts of the assembly arm. This lever arm operates two switch handles by means of a unique spring and roller design. The travel position of the lever arm is detected by two micro-switches which disconnects the power to the transfer motor, when appropriate. The entire mechanism provides a positive mechanical interlock to prevent both molded case switches from being closed at the same time. model DTS3R-225 transfer switch is rated at 225 amps on both normal and emergency positions. It is designed for a single phase, 120/240 volts, 60 hertz, 2 pole operation.

FEATURES AND BENEFITS

  • Heavy duty contact rating of 225 amps at 120/240 volts, 1 phase, on both normal and emergency sides, allowing maximum capacity for all class induction loads.

  • Transfer switch contacts will withstand an interrupting rating of 10 KA for loading of 225 amp rating.

  • Transfer switch is designed as an electrical operated, mechanical held operation, to eliminate electric vibration noise on operating position.

  • Transfer switch is designed to operate manually, if automatic controls mal-function.

  • Transfer switch operates at loss of utility power or at a 75% level of utility power, allowing protection against low voltage damage to connected loads.

  • Transfer switch enclosure is classed as NEMA-3R, which can be installed inside a building or outside in all types of weather.

  • Total switch rating is certified to UL-1008 standards.

  • Total product is backed by a one year warranty from date of shipment to end user.

  • Physical specifications : 24” Wide x 30” Long x 8” Deep and net weight is 90 pounds.

  • Included Equipment : All necessary relays for automatic operation. 24 hour, 7 day programmable exerciser clock, and load connector blocks.
